- Simple structure in linear type ,easy in installation and maintation.
- High pressure double crank to control the die opening and closing.
- Running in a high automatization and intellectualization,no pollution
Products Application

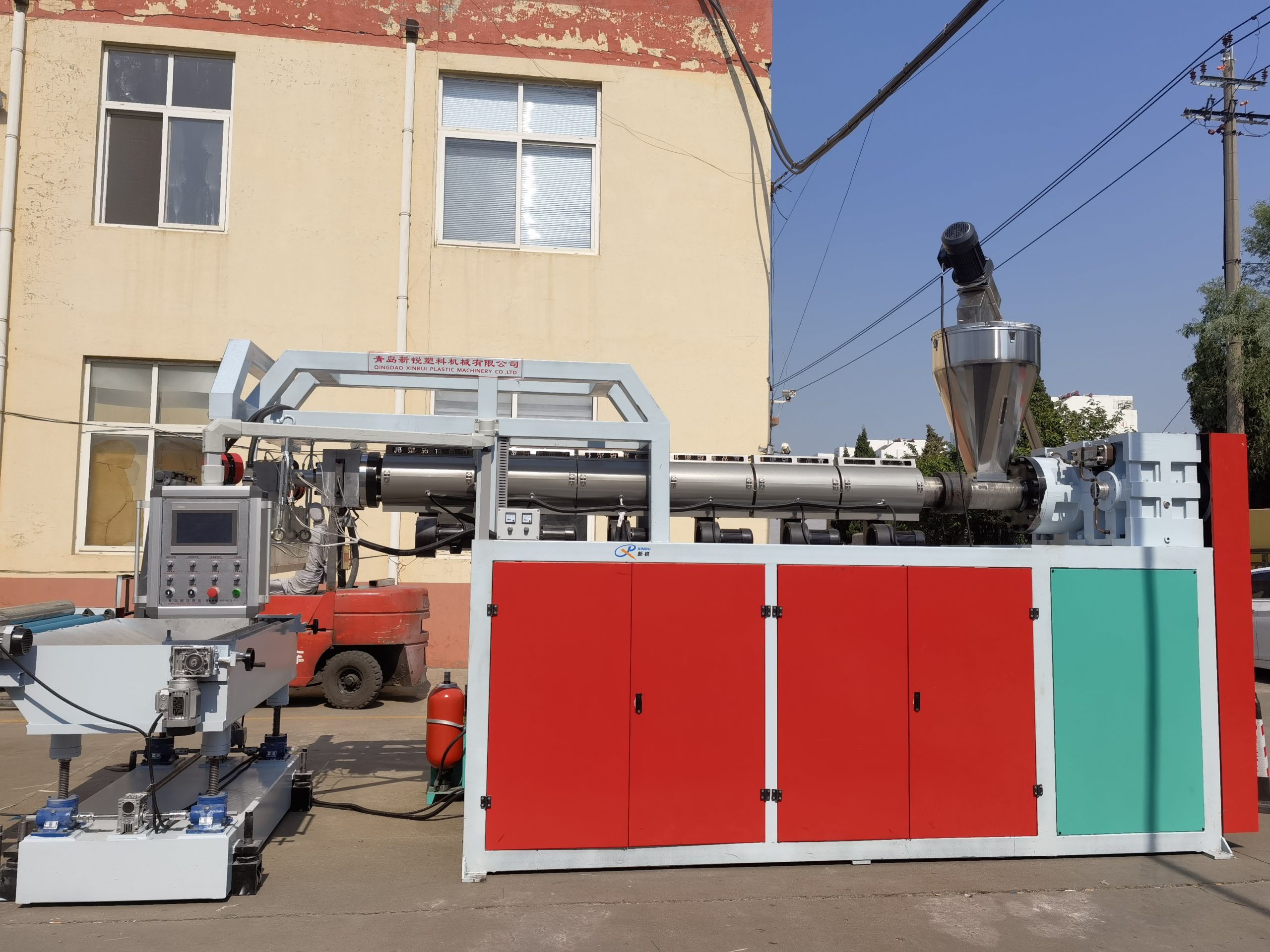

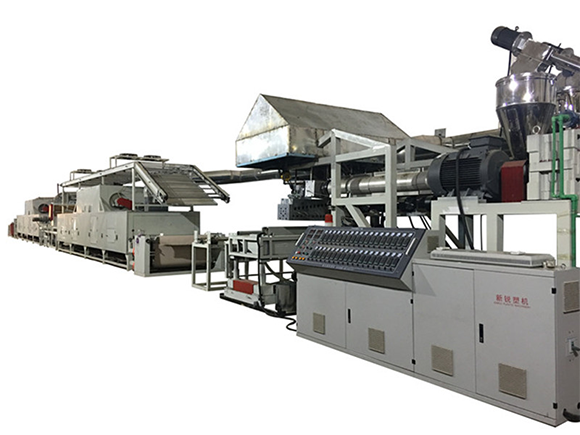

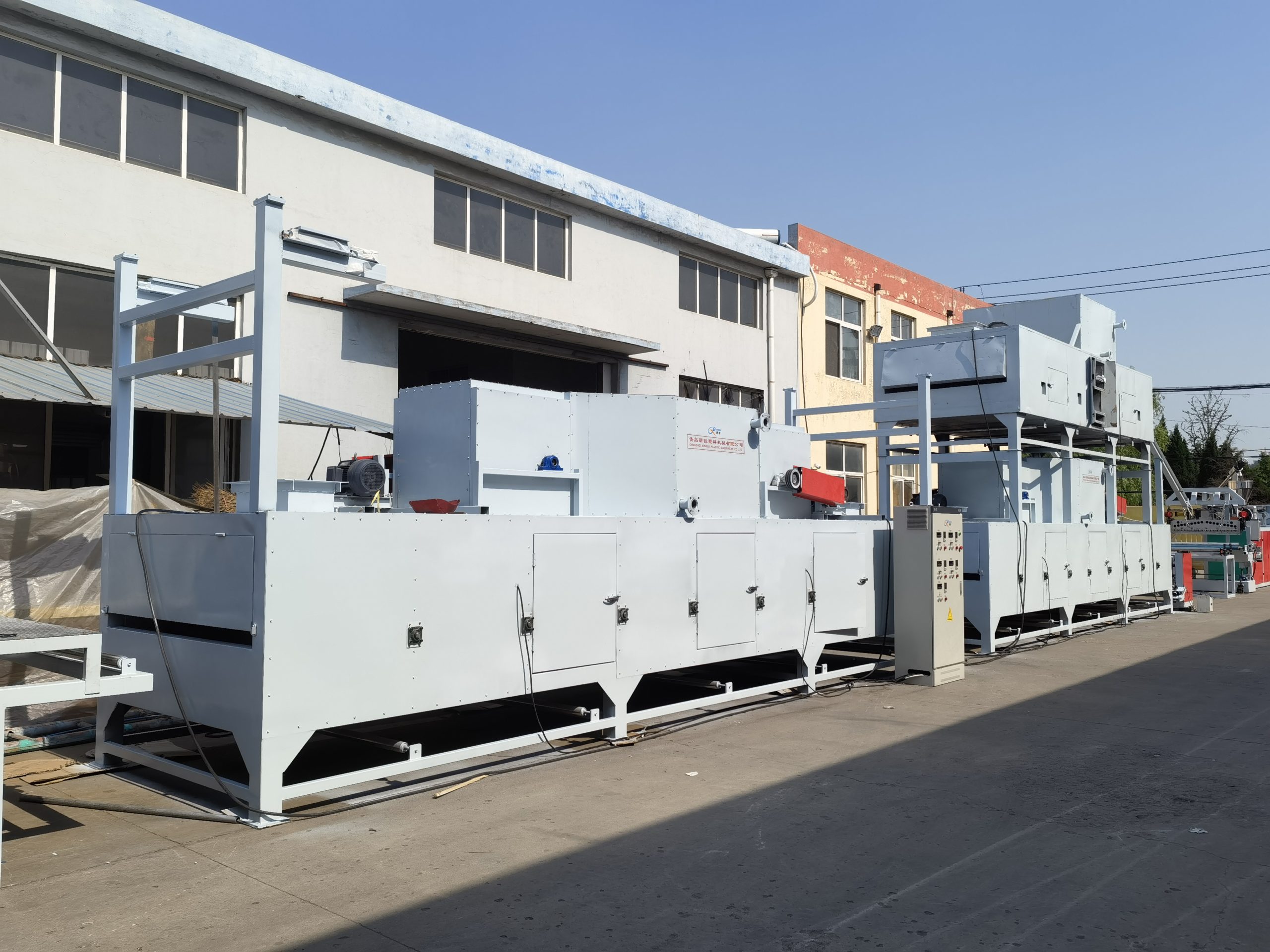

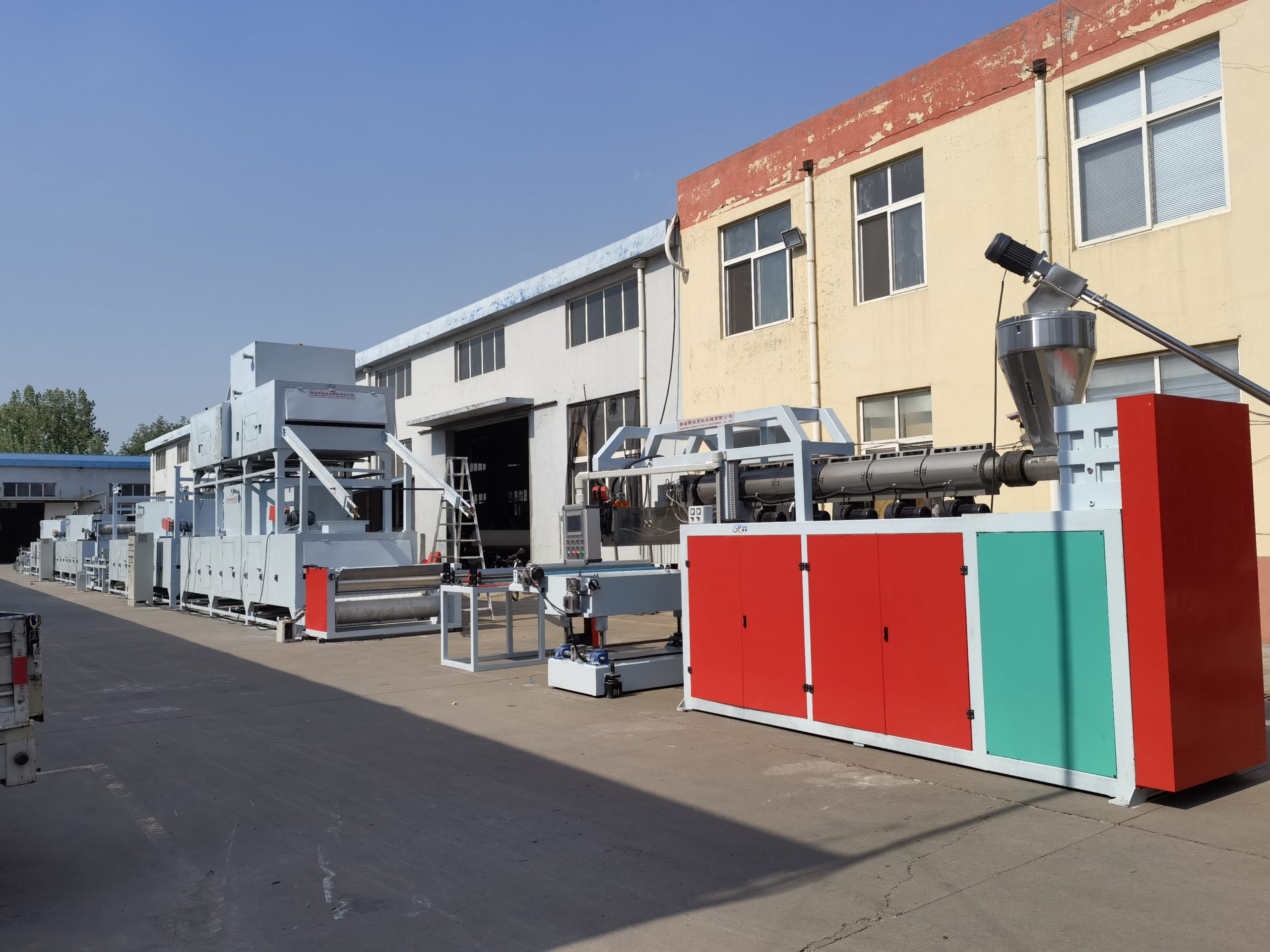

PVC coil mat machine can also be called PVC car foot mat machine, PVC mat machine

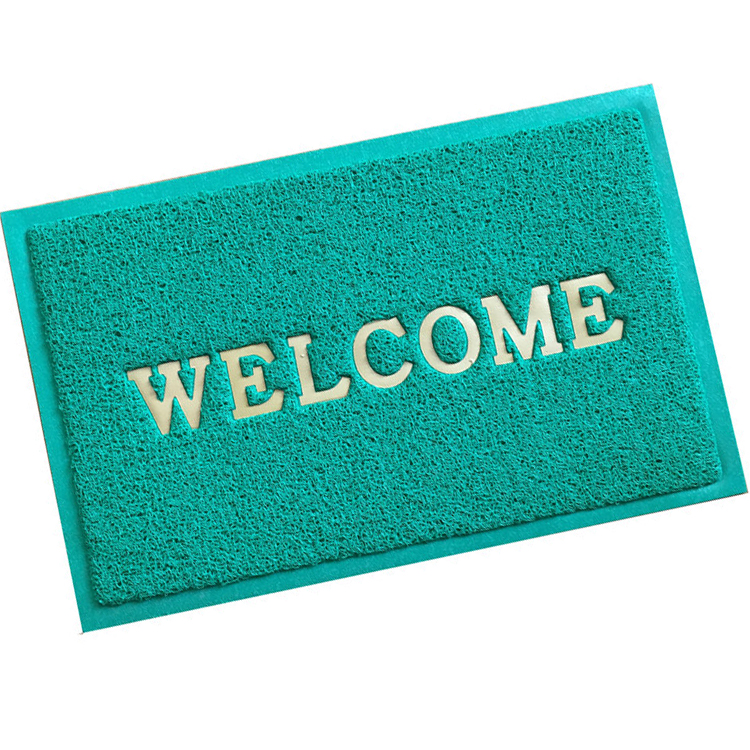

Final product is mainly used as foot mat in car. Compared with ordinary carpet, it has distinct decorative effect and warm comfort, with long-life and easy-cleaning features.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
MAIN PARAMETERS OF PVC COIL MAT:
Width:1200mm,1800mm
Thickness:6-20mm
Output: 500-600kg/h
Length: fixed-length cut
Dimensions: According to the drawing
ENVIRONMENTAL CONDITION:
| Location | Indoors |
| Power Supply | No dangerous area |
| Humidity | ≤95% |
| Temperature | 0-40ºC |
| Power | 3-phase, 380V, 50Hz |
| Transformer capacity | ≥400KVA |
| Cooling Water | ≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line |
| Compressed air | 0.3 m³ /min, >0.5MPa, Equipped with 3kw air compressor |
| Production Line Dimension | 50m*2.5m*3.5m |
